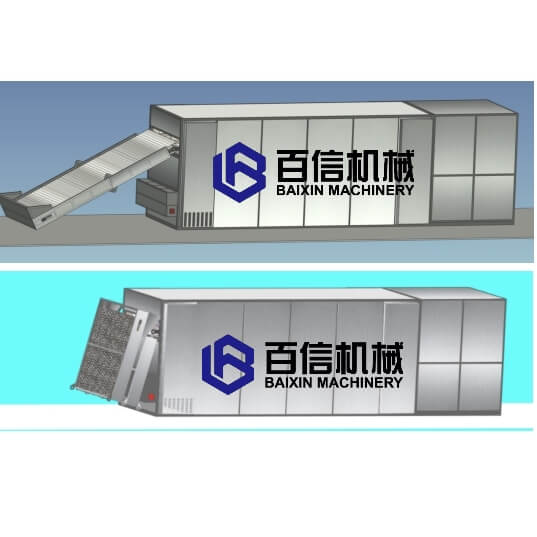

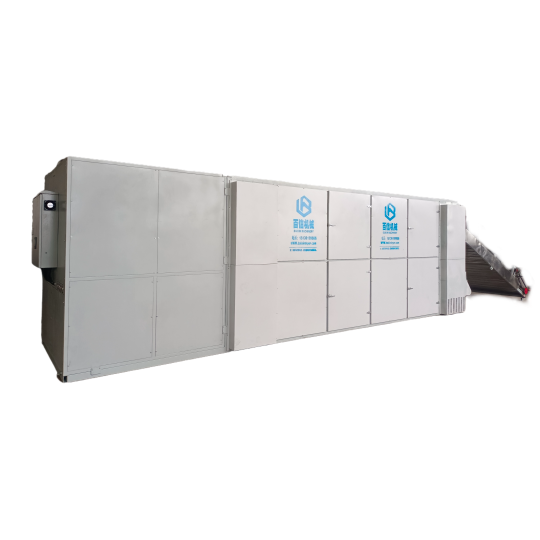

All-In-One Multi-layer Mesh Belt Dryer

Applicable Vegetables/Fruits/Herbs/Agriculture etc
Output 300-500kg/h
Drying time 0.5h-5h
Temperature  40-80℃
Heat source Heat Pump
Core    advantages Continuous Automatic Work/ Large Output/Dryer Time Short/Without Installation
Working principle of all-in-one multi-layer mesh belt dryer

All-in-one multi-layer dryer machine is a kind of continuous production drying equipment. Its main working principle is to spread the material evenly in the network. The material is moved in the dryer by the operation of the machine, and the hot air draws out the water vapor of the material. so as to achieve the purpose of drying.
The operation temperature is 40-80 degrees centigrade. And the dry cycle is 1-5 hours.

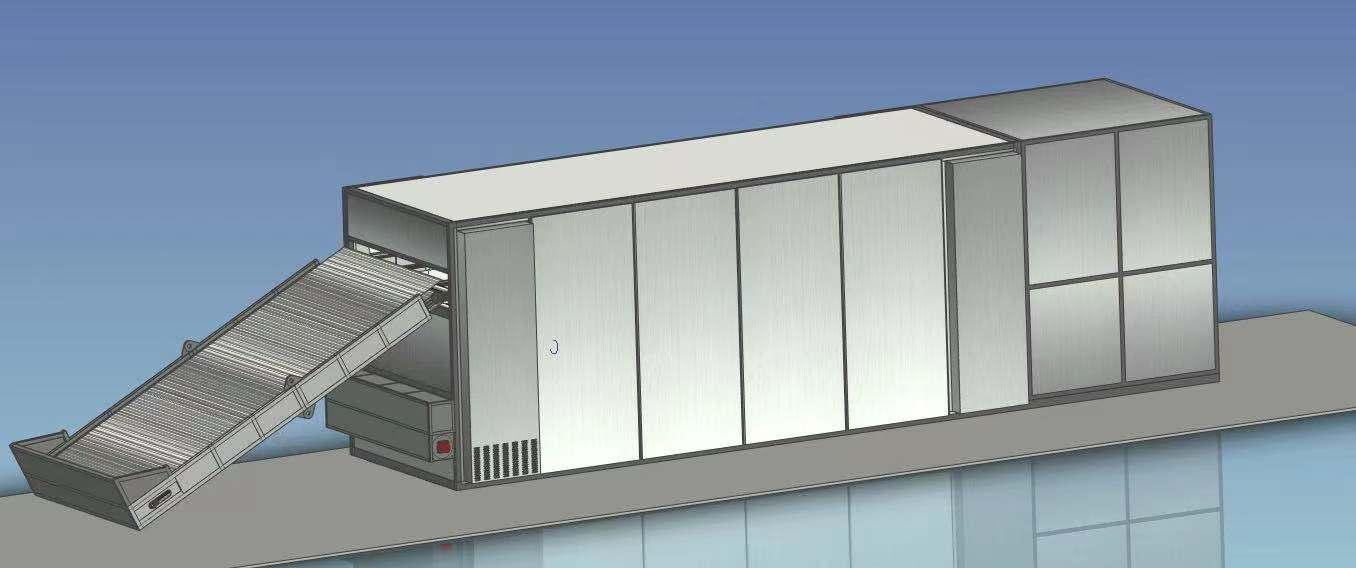

How to dry food :

1:Place the material on the conveyor belt of the material dryer. The material is spread on the feeder by the homogenizing device on the conveyor belt.The stacking thickness of the material is 10-20CM.
2:After the material enters the material dryer, it runs in an "S" shape in the dryer. The transmission part of the material dryer adopts a variable-frequency speed-regulating motor, which can control the internal operation time of the drying according to the difference of the water content of the material.
3:The wind speed and wind pressure generated by the hot air blower make the hot air fully and evenly distributed inside the material dryer. The hot air naturally moves upward, passing through each layer of the mesh belt, plus the movement and rolling of the material, making the material fully in contact with the hot air, fully heat exchange, and improving the drying efficiency. The dried material will drain through the last layer.

Components of all-in-one multi-layer dryer
Advantages of all-in-one multi-layer dryer
1. Middle and low temperature dehumidification drying
The Baixin customized conveyor mesh belt large material dehydrator drying fruits and vegetables in 50℃~80℃, articles do no damage, no moldy and maintain nutrition.
2. Use heat pump technology
The Baixin customized conveyor mesh belt large material dehydrator with high efficiency through the use of a heat pump system for removing air humidity.
3. Working in a wholly sealed drying system, hygiene, and energy conservation
Drying in a closed sealed system, no foreign material pollution. Efficiency is irrelevant to the external environment, which can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.
4. Running Stable, operating easily
A graphical touch control system, automatic intelligent control and demands no human duty after setting.
Technical parameter
Model BX-2*6m BX-2*8m BX-2*9m BX-2*10m BX-2*12m BX-2*15m

Areas of dry
4 layers 36 64 72 80 96 120
5 layers 45 80 90 100 120 150
6layers 54 96 108 120 144 180
Thickness of the material 50-200mm
Operation temperature 40-120
Drying time 0.5-5h
Motor Power YCT-1.1kw YCT-1.5kw YCT-1.5kw YCt-2.2kw YCT-3kw YCT-5.5kw
Evaporation,capacity 300-500
The size of input furnace 3.2*1*2.7 3.9*1.26*3 3.9*1.26*3 4.7*1.5*3 4.7*1.5*3 4.7*1.5*3
Fan 8C-11kw 10C-15kw 10C-15kw 11C-22kw 12C-22kw 14C-55kw
Exhaust fan 3.15C-1.5kw Y5-47-4C-2.2kw
Output conveyor 0.12kw(adjust speed motor)
Total power 14.9kw 20.7kw 24.2kw 28.4kw 37.2kw 64.7kw
Field of Application
The dryer machine  has good quality, and both inside and outside dryers are made of stainless steel or paint materials. High temperature resistance, corrosion resistance, high strength, rust-free, suitable for food series, vegetable series, fruit series, pharmaceutical series, agricultural and sideline products of large-scale continuous dehydration drying.


Drying material before and after
