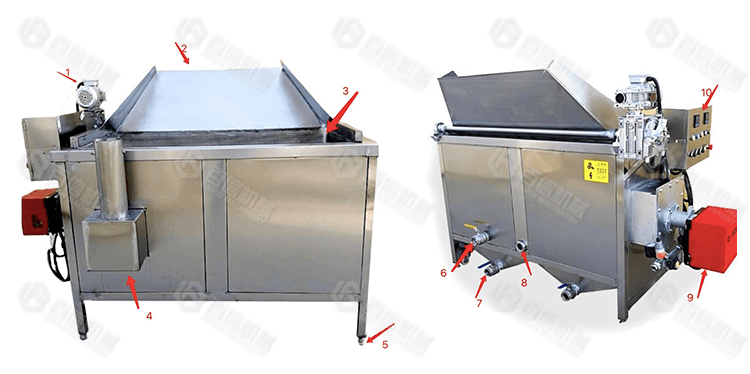

Batch Fryer Machine

The main parts of this small scale batch fryer machine are made of SUS304 stainless steel. The heating mode is high-temperature heating tube or burner. Equipped with automatic feeding system, mixing system, emission system and combustion system. Suitable for many kinds of products, like meat pie, chicken nuggets, potato chips, spring rolls, peanuts, chin chin and other snacks.

Name	Batch Fryer Machine
Heating method	Electric or Gas
Material	SUS304
Frying frame area	500/1000/1500/2000*500mm
	1000/1500/2000*800mm
Oil capacity	50L/100L/150L/200L/300L/400L/500L/800L
Capacity	5-30kg/batch
Discharging material	Automatic or Manual
Feeding material	Automatic or Manual
Note	1.The basket is stainless steel holes; 2.The working temperature and frying time are adjustable; 3.With automatic and manual working type; 4.Oil water separation frying system.

1	Gas or electricity as heating source
2	Oil-water separation and filtration system or pure oil filtration system
3	Automatic discharging and optional automatic feeding through motor-driven manner to reduce labor intensity
4	Automatic temperature control: 0-300°C to be set at your will
5	optional timer and alarm to remind you when the frying is finished
6	optional slag scrapping device if the fried products produce much slag and residue

Heating Source	Model	Weight(kg)	Oil Capacity	Machine Dimension(mm)	Power	Capacity(kg/batch)
Electric	BX500	70	50L	700*700*950	12KW	5
	BX1000	100	100L	1200*700*950	24KW	10
	BX1500	150	150L	1700*800*950	36KW	15
	BX2000	240	200L	2200*800*950	48KW	20
LNG Gas	BX500	500	120L	1000*800*1100	100000kcals	10
	BX1000	600	200L	1500*1000*1100	100000kcals	20
	BX1500	700	300L	2100*1000*1100	100000kcals	25
	BX2000	800	400L	2600*1000*1100	100000kcals	30

This batch fryer machine is suitable for various kinds of fried food like meat pie, chicken nuggets, potato chips, banana chips, spring rolls, peanuts and many other snacks.It is widely used in food industry. This batch frying machine always works together with other machines like deoiling machine to combine one frying production line.
