Bubble Washing Machine

 Applicable  It is suitable for washing various fruit and vegetableslikecabbage/spinach/celery/tomato/
jujube/date/plum/cherry/broccoli etc.
Suitable for kitchens of food processing factory/
school/restaurant/big factory/Supermarket etc.
 Core advantages  Wide range of applications/No damage to materials/
Safety and hygiene/High efficiency/Can be customized
Working principle of bubble washing machine

1.The materials are soaked in the water and are subjected to thorough agitation by means of powerful blower to remove dust and such foreign particles.The water pressure sprays can be installed to rinse the products.
2.When the materials into the water tank, they will be fully scattered, rolling, cleaning and transferring in under of high pressure water and strong flow.
3.The mud fall off from the surface of materials will into the bottom of the sink. It will not back flow that may cause pollution.
4. The small weed, bug or other clutters in the water will collected by separation net.
5. The cleaned materials will be sent out by net belt and spray cleaning. Then go the next step.

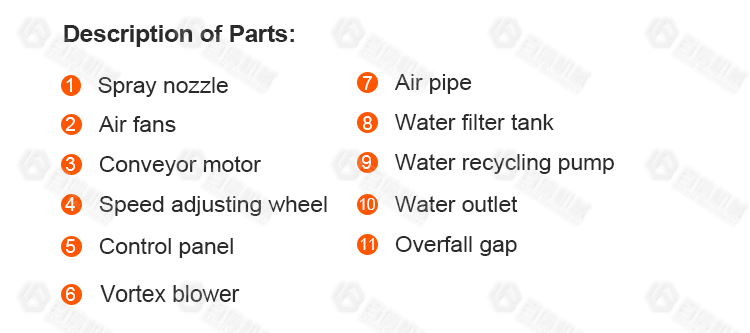

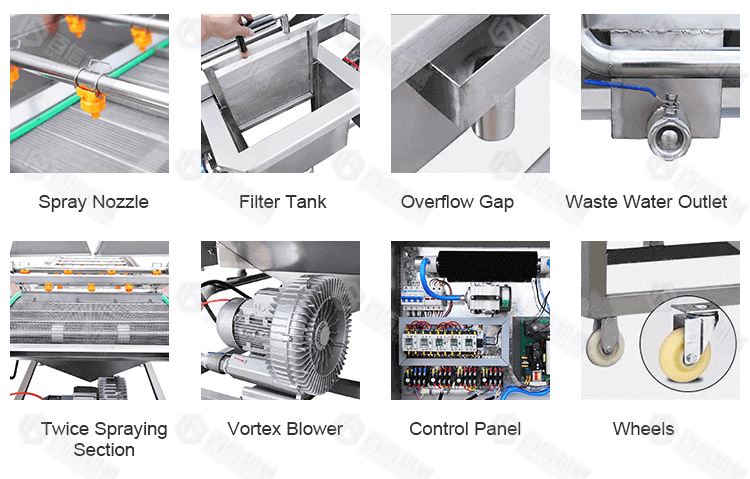

Components of bubble washing machine

Advantage of bubble washing machine:

1 Equipped with a bubble generator to make the objects roll over. High pressure air bubble and spraying water can wash off dirt, sands and other residues.
2 Equipped with VFD to better adjust the belt speed.
3 Equipped with separate filter tank and water recycling system.
4 Equipped with spraying section with clean water for twice washing. The objects are automatically conveyed to spraying section by the conveyor mesh belt
5 Equipped with high quality 304 stainless steel. Safe and reliable.No damage to materials.
Technical parameter
Model Dimension Weight Power Capacity
BX-2500 2500*1000*1300mm 400kg 4.45kw 500kg/h
BX-3000 3000*1200*1300mm 600kg 5.25kw 800kg/h
BX-4000 4000*1200*1300mm 700kg 6.6kw 1000kg/h
BX-5000 5000*1200*1300mm 900kg 8.3kw 1500kg/h
BX-6000 6000*1200*1300mm 1100kg 9.4kw 2000kg/h
Field of application
It is suitable for washing various fruit and vegetables like cabbage, spinach, celery, tomato, strawberry, apple, peach. lettuce, pepper, chive, mushroom, jujube, date, plum, cherry, broccoli etc. Suitable for restaurant, big factory, food processing factory, supermarket, kitchens of school etc.
