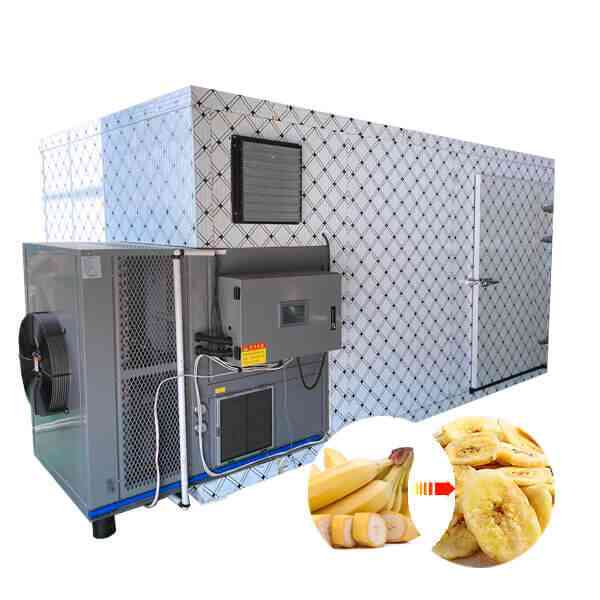

Banana Heat Pump Dryer/Drying Machine

 Applicable  Vegetable/Fruit/Meat/Seafood/Agricultural /Noodle/Wooden      Drying
 Output  100-3000kg/h
 Temperature  ≤80℃
 Drying time  Depends on different drying materials
 Heat pump model   1P/2P/3P/6P/8P/10P/15P/20P/30P/40P/60P
 Core advantages  Energy saving and environmental protection/
 Simple installation and operation/Wide application field
Share:
Working principle of banana heat pump dryer

Banana heat pump dryer is use of reverse Carnot principle let hot air circulation blower to dry the material.Heat pump dryer Compressor - heat exchangers - Chokes - heat sink (outside the machine) - Compressor and other devices constitute a refrigerant cycle system.Fan wheel rotates, the outside air into the oven,After heater, hot air is formed,Then enter the working chamber through the air distribution plate gap , A lot of hot air inside the circulating flow, Continue to enter new air inlet supplement.After the recycled exhaust moisture from the exhaust port.Whole cycle, so that the material is heated uniformly, and the purpose of drying.

Components of banana heat pump drying machine
One Set banana heat pump drying machine Contains:
1, Heat pump drying host
2, Drying chamber
3, Fan frame with fan
4, Trolley with tray
The drying chamber is used 100mm polyurethane insulation board, supporting 304 stainless steel trolleys and trays.

Technical parameter
type machine size(MM) Capacity (KG) heat pump power Qty of fan fan power(kw) total power(kw) Qty of cart Qty of tray cart size(MM) tray size(MM)
3P A 3500×2200×2200 200-400kg 2.25 6 0.25/unit 3.75 6 78 670×810 600×800
8P A 5300×2200×2800 450-750kg 6 12 0.37/unit 10.44 6 156 1210×870 600×800
8P B 5300×2200×2800 450-750kg 6 12 0.37/unit 10.44 6 156 1210×870 600×800
8P C 5300×2200×2800 450-750kg 6 12 0.37/unit 10.44 6 156 1210×870 600×800
15P 7500×3000×2800 900-1500kg 11.25 12 0.55/unit 17.85 12 312 1210×870 600×800
1P D 1180×680×1800 50kg-80kg 1 1 15 600×800
3P D 2100×930×2100 120-300kg 3.5 3.5 40/60 600×800
8P D 4000×1960×2050 650-1000kg 8 8 8 232 600×800 600×800
Field of Application
The heat pump can be used in many application,like agriculture,industry,seafood,grain,herbs,construction,paper products,seasoning,mineral industry,etc
Dry vegetables like Radish, lettuce, pumpkin, carrots, spinach, cassava,etc
Dry fruits like  Apple, lemon, mango slices, dried longan, dried longan,etc
Dry meat:  Sausage, beef, duck, ham,etc
Others it can dry noodle/ wooden /stick incense/herbs /floers ect.
Your product is not listed above? We are ready to meet any new challenge! Contact us for free product testing!

Application of Banana Heat Pump Dryer
