How to dry cassava/Cassava drying methods/Cassava drying process
How to dry cassava/Cassava drying methods/Cassava drying process
Cassava is widely planted in more than 100 countries or regions in Africa, America, and Asia. It is one of the three major potato crops and the sixth-largest food crop in the world. It is known as the "king of starch" and the food ration for nearly 600million people in the world.With the development of the cassava industry, the use of cassava has gradually diversified, as feed, starch, fuel ethanol, and other industrial raw materials.
Cassava processing has good development prospects and huge market in the world. Further processing of fresh cassava can increase the added value of cassava in the cassava planting industry and reduce cassava losses and storage and transportation costs caused by cassava price fluctuations. This is the best choice for cassava business!
First of all, you need to know the drying process of cassava.
Cassava Drying Process Flow Chart/Cassava Drying Method:
The working process of the cassava drying: cassava cleaning and peeling-slicing-drying-packaging.
Cassava Drying Machine Component:
A complete large-scale cassava drying plant mainly includes: cassava washing and peeling machine, cassava slicer, cassava chip dryer, cassava grinding machine(Optional), packaging machine(Optional), etc., each equipment interacts. Connected by a hoist.
The most important part of cassava processing is cassava drying, so what is the drying method of fresh cassava? Next, I will share with you the cassava dryer configured by Baixin Machinery.
The most commonly used drying methods for cassava drying are continuous multi-layer mesh belt drying and hot air drying box. Different types of cassava drying equipment are configured according to the customer's cassava drying requirements.

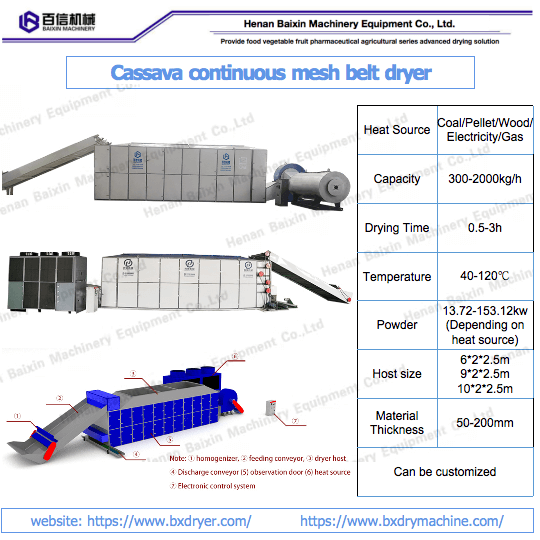

Cassava Drying Scheme 1: Cassava Multi-layer Mesh Belt Dryer:
The Working Principle of Cassava Multi-layer Mesh Belt Dryer:
Cassava multi-layer mesh belt dryer machine is a kind of continuous production drying equipment. Its main working principle is to spread the cassava evenly in the network. The cassava is moved in the dryer by the operation of the machine, and the hot air draws out the water vapor of the cassava. so as to achieve the purpose of drying.
The operation temperature is 40-120 degree centigrade. And the dry cycle is 1-3 hours.
The Components of Cassava Multi-layer Mesh Belt Dryer:

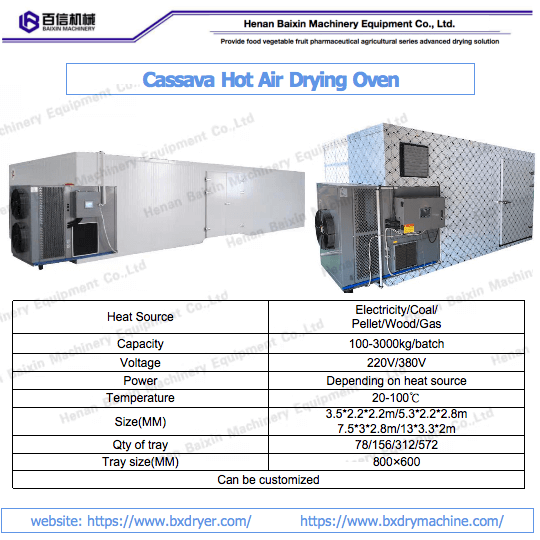

Cassava Drying Scheme 2: Cassava Hot Air Drying Oven:
The Working Principle of Hot Air Drying Oven:
Cassava hot air drying oven is use of reverse Carnot principle let hot air circulation blower to dry the material.Heat pump dryer Compressor - heat exchangers - Chokes - heat sink (outside the machine) - Compressor and other devices constitute a refrigerant cycle system.Fan wheel rotates, the outside air into the oven,After heater, hot air is formed,Then enter the working chamber through the air distribution plate gap , A lot of hot air inside the circulating flow, Continue to enter new air inlet supplement.After the recycled exhaust moisture from the exhaust port.Whole cycle, so that the material is heated uniformly, and the purpose of drying.
The Components of Cassava Hot Air Drying Oven:
Cassava Drying Machine Price / 1000kg/h Automatic Cassava Drying Parameter:
| 1000kg/h automatic cassava drying | |||||
| Number | Name | Power | Size | Output | Price(Dollar) |
| 1 | Cassava Cleaning and Peeling Machine | 3.75KW | 3200*1100*1350mm | 1000kg/h | 4500 |
| 2 | Cassava Slicer | 1.5KW | 900*850*900mm | 1000kg/h | 3800 |
| 3 | Cassava Dryer | 33.12KW | 12000*2000*2500mm | 1000kg/h | 42000-63000 |
| The cassava processing line can be equipped according to the user's requirement and the production demands. | 50300-71300 | ||||
Cassava Drying Machine Price/ 200-300kg/h Cassava Drying Parameter：
| 200-300kg/h small output cassava drying | |||||
| Number | Name | Power | Size | Output | Price(Dollar) |
| 1 | Cassava Cleaning and Peeling Machine | 0.75KW | 2120*840*900mm | 500kg/h | 1700 |
| 2 | Cassava Slicer | 1.5KW | 900*850*900mm | 500kg/h | 1900 |
| 3 | Cassava Dryer | 3KW | 2100*930*2100mm | 200-300kg/h | 7500 |
| The cassava processing line can be equipped according to the user's requirement and the production demands. | 11100 | ||||
Do you want to start a cassava business? If you want to get the cassava processing machine price and more professional questions about cassava drying, please feel free to contact us online!!
Cassava Drying Video：
